W76S Secure Element

Winbond's W76S Secure Element is an innovative solution which includes 4MB W75F Secure Memory Element whose memory size can be scaled to meet designers' requirements. The W76S Secure Element comes with Arm® SecurCoreTM, SC000TM 32-bit RISC with a core clock up to 100MHz and Memory Protection Unit (MPU). Various coprocessors, crypto, such as 3DES, AES 128/192/256, RSA-2048/4096, and ECC 521, True RNG and side-channel attacks (SCA) are used in W76S to advance the security features.

The W76S Secure Element has passed Common Criteria EAL5+, EMVCo and CFNR (China Financial National Rising Authentication) certification. It can also be used for the embedded Universal Integrated Circuit Card (eUICC) applications, supporting multi-profiles, remote provisioning and at the same time, save footprint on the PCB. The eUICC will enhance operational efficiency of the M2M ecosystem.

Winbonds TrustME® solutions provide IoT, Secure Boot, Biometric information authentication, GSMA remote provisioning, AG2 support and more.

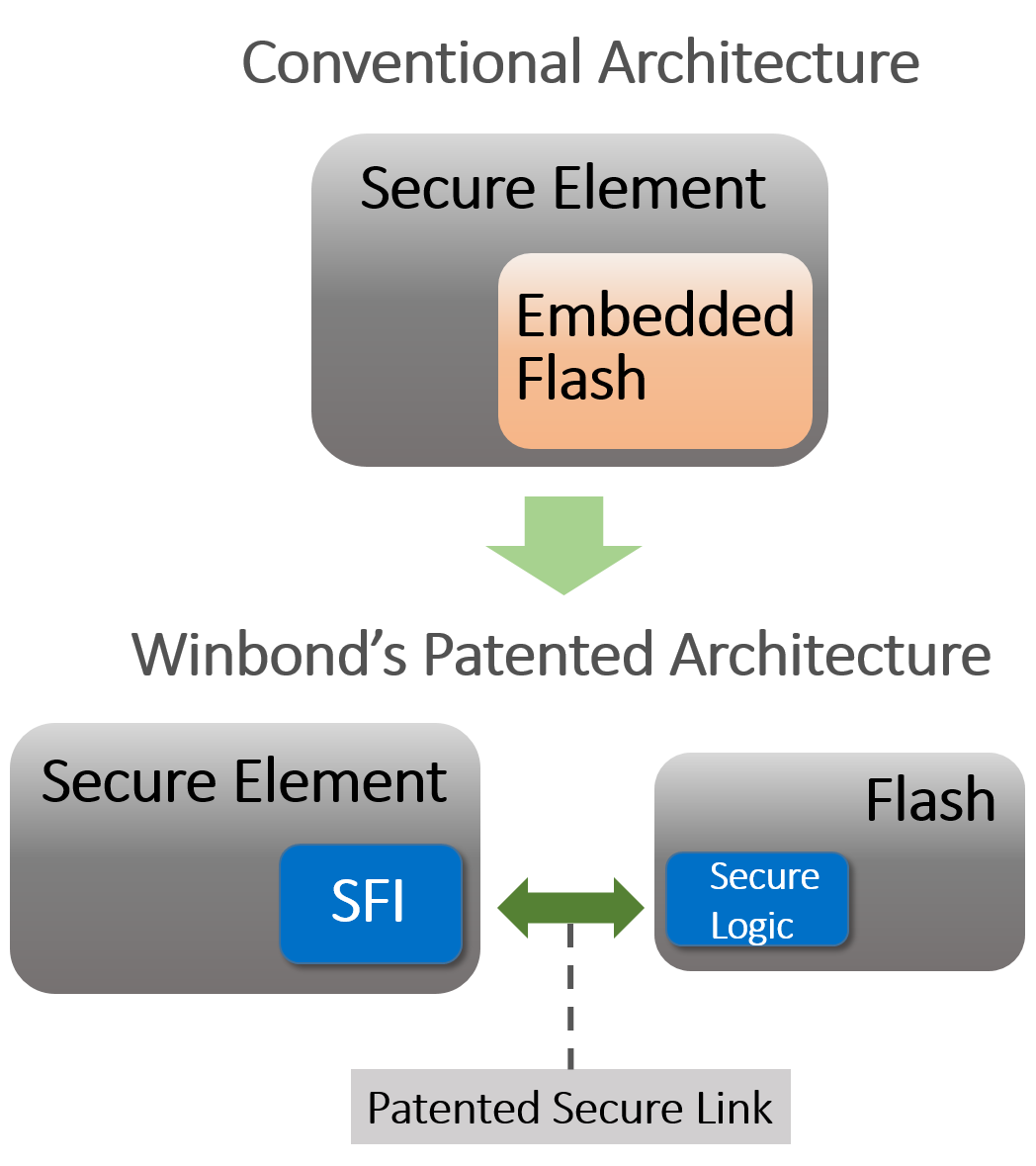

Uniquely Paired Secure Controller and Secure Flash Memory

Uniquely Paired Secure Controller and Secure Flash Memory

─Added digital logic to Flash device to protect Secure Flash interface and create secure link between integrated IP and flash.

─Flash device from Winbond as a security companion device

Cost Effective, Two Separate Devices

─Standard Flash memory process

─Standard CMOS process for the controller

Scalable Large Flash Density to Enable Application Innovation



The W76S Secure Memory Element has passed Common Criteria EAL5+, EMVCo and CFNR (China Financial National Rising Authentication) certification

Density

Part No. Voltage Speed Temp. Features Status Industrial
Datasheet
Automotive Industrial
W76S4MR 1.62-3.6V 100 MHz -40℃ ~ 105℃ 32-bit CPU based on Arm® SecurCore™ SC000™ core with 32KB RAM
• Compatible with Java Card specification 3.x
• Crypto accelerators for 3DES, AES, RSA, ECC, SHA, TRNG
• GSMA remote provisioning specifications compliant
• GlobalPlatform UICC Card architecture support </div>
